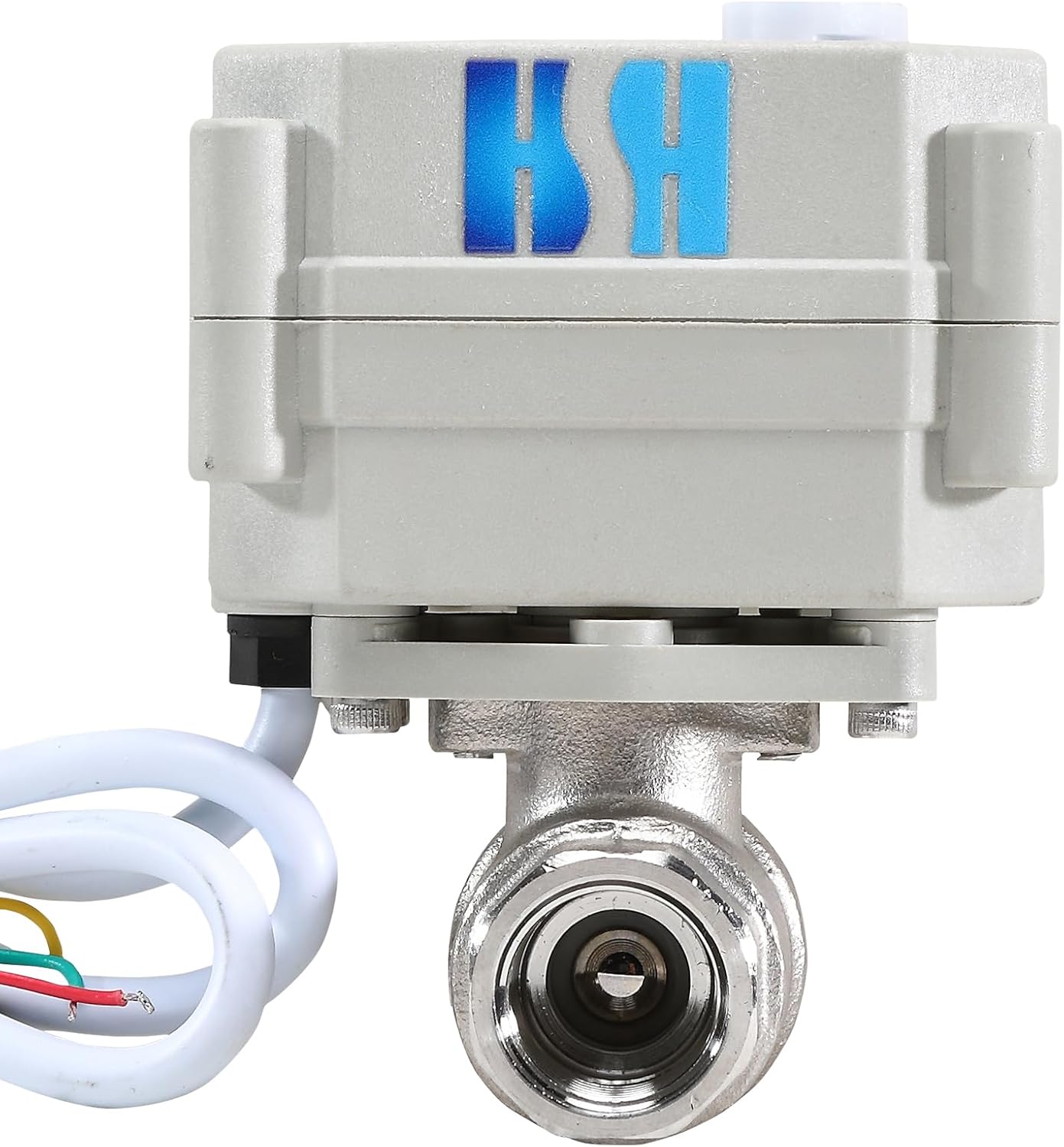

3/8" DN10 2 Way 12VDC 9-24VAC/DC NPT Stainless Steel 304 Three Wires Control On/Off Electrical Motorized Ball Valve

Technical Parameters:◎Valve Body Diameter: 3/8 inch NPT;◎Valve Body Material: Stainless Steel 304;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM and PTFE;◎Wiring Diagram: CR303-B(Three-Wire Control Without Power-Off Reset Function);◎Working Voltage: 9-24VAC/DC( Include 12VDC 24VDC 24VAC 36VDC);◎Working Current: ≤500 mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 145 Psi;◎Switching Time: ≤5 sec.;◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)◎Actuator Rotation Angle: 90°;◎Torque Force: 3 N.m.;◎Cable Length: 0.5m;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES◎Manual Override: YES;◎Protection Class: IP67Application:◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);Manual Override Instructions:◎In case of anelectric supply failure, it is possible to operate the actuator manually.◎Power must in off position when start the manual override.◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.

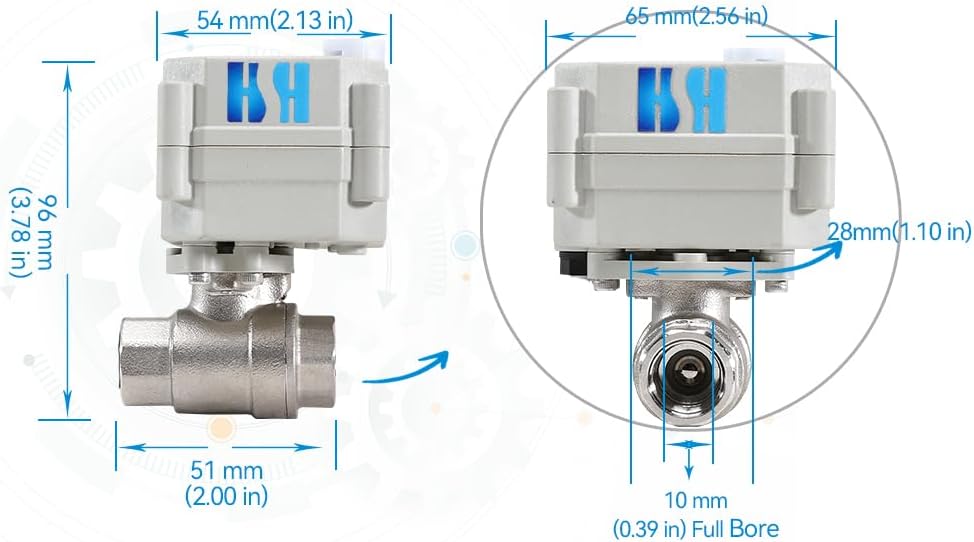

• ◎High-Performance 3/8" NPT Stainless Steel Valve Body With 10mm Full Bore This Robust CF8 Valve Body, Featuring A Full Bore Of 10mm And 3/8 inch NPT Threading, Is Engineered For Optimal Fluid Control. Its Versatile 2-Way Design Facilitates Efficient Bi-Directional Flow, Offering Unparalleled Flexibility And Performance.
• ◎Versatile Voltage Compatibility: Operates Across 9-24VAC/DC Experience Seamless Operation Across A Wide Voltage Range, From 12VDC 24VAC/DC to 36VDC. This Broad Compatibility Ensures Reliable Performance In Various Electrical Setups, Making It Ideal For Industrial Applications Requiring Adaptable Power Sources.
• ◎Enhanced Safety With Integrated Limit Switches: Automatically Cuts Off Current Equipped With Advanced Limit Switches, This Valve Provides Automated Current Cutoff Upon Reaching The Desired Position, Enhancing Precision And Preventing Potential Damage. Enjoy Peace Of Mind With Enhanced Safety Features.
• ◎Valve Design For Projects That Without The Need For A Power-Off Reset. Simply Connect RD & GR To Positive, And BK To Negative. The Valve Opens When The Switch (SW) Is Closed And Closes When SW Is Open, With The Actuator Automatically Powering Off Once In Position. Ideal For Applications Where A Return To The Original State Upon Power Loss Is Not Required.
